Style based pen tables (STB) allow you to set the lines weight and colour e.t.c independently from the colour you see on the screen.Hidden plots your 3D view with hidden lines removed. Colour base pen tables (CTB) convert the colour of the line on screen to a line weight on your plotted drawing. Double-click the viewport border to display the Properties Inspector.This dialogue controls which Plot style or ‘Pen Table’ Autocad will use to plot your drawings.

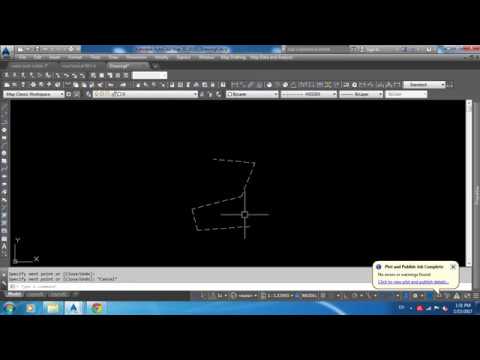

You can also change it using the command LTSCALE.Accordingly, how do I create a hidden line in AutoCAD 2019? Changing it from 1 to 0.5 will make your dashed line twice as dense. Change the Global scale factor. The easiest choice is to set the linetype scale to the drawing scale factor.Also Know, how do you make a dashed line smaller in AutoCAD? To adjust the scale, open the Linetype manager through Format > Linetype.
